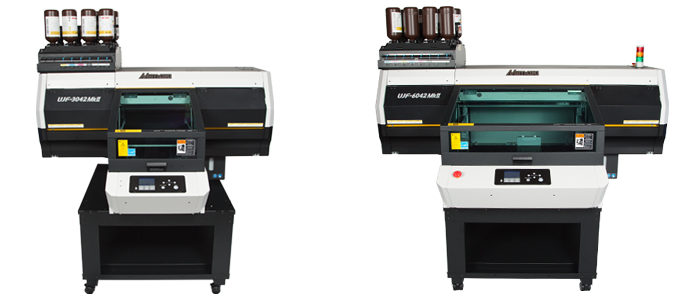

UJF-3042 MkII / UJF-6042 MkII
High performance, state-of-the-art, small format LED UV printers
Mimaki’s latest UJF-3042 MkII and UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing. Available in A3 or A2 format, these new models build on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.
UJF-3042MkII / UJF-6042 MkII delivers • • •
- 20% increase in productivity when compared to UJF-3042/6042 Series*
- Direct printing on substrates up to 153mm thick

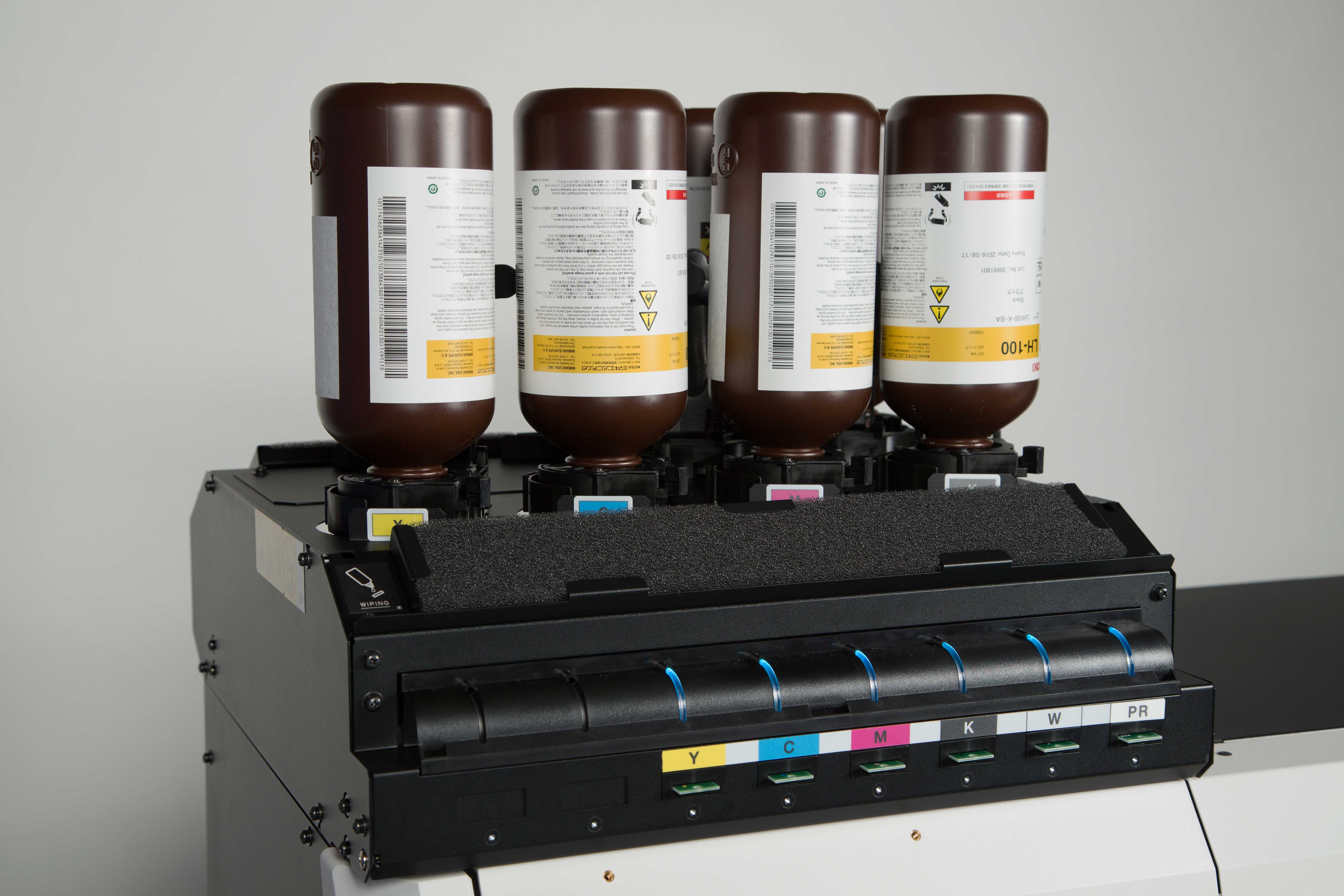

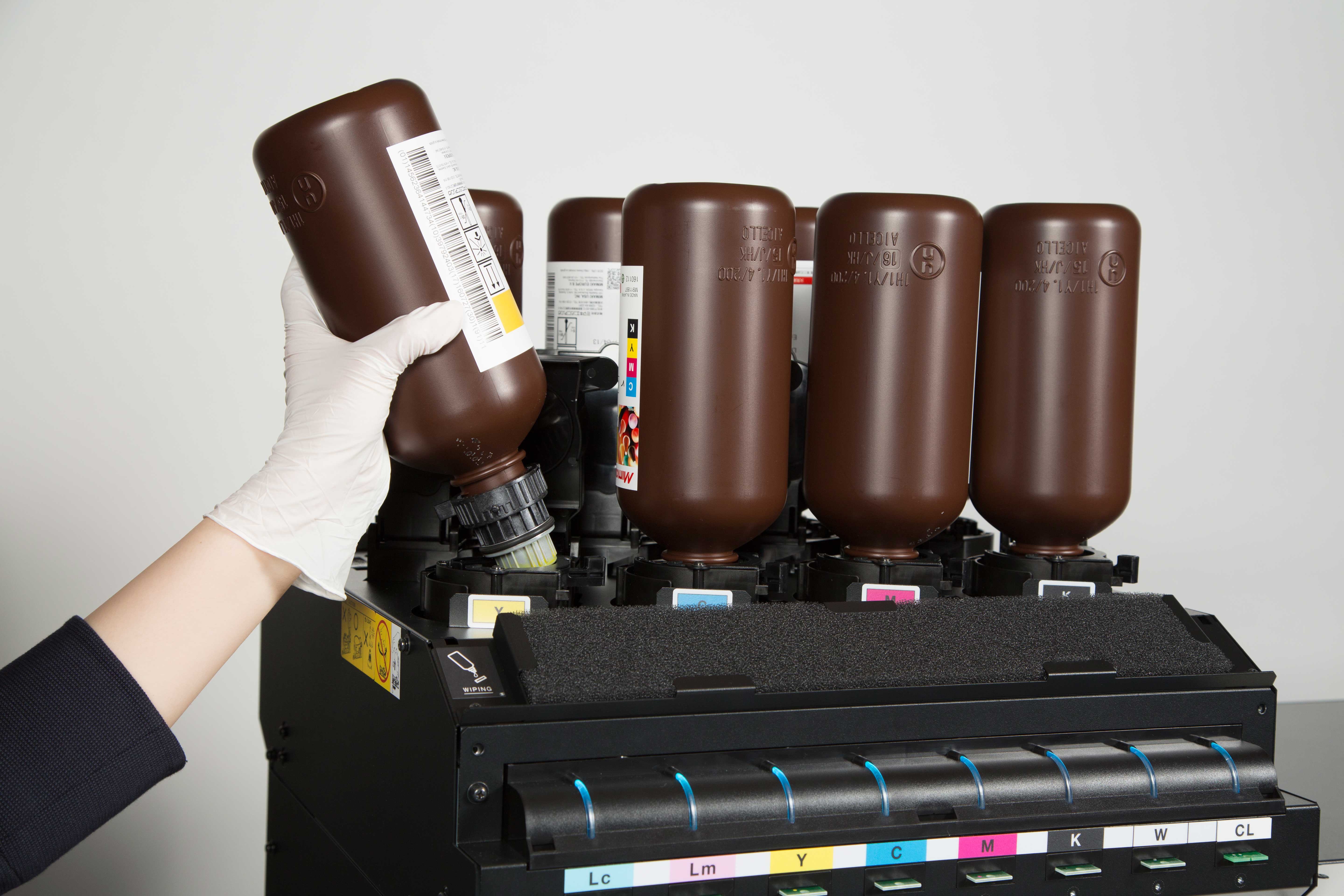

- MBIS bulk ink system with 250ml / 1,000ml bottles

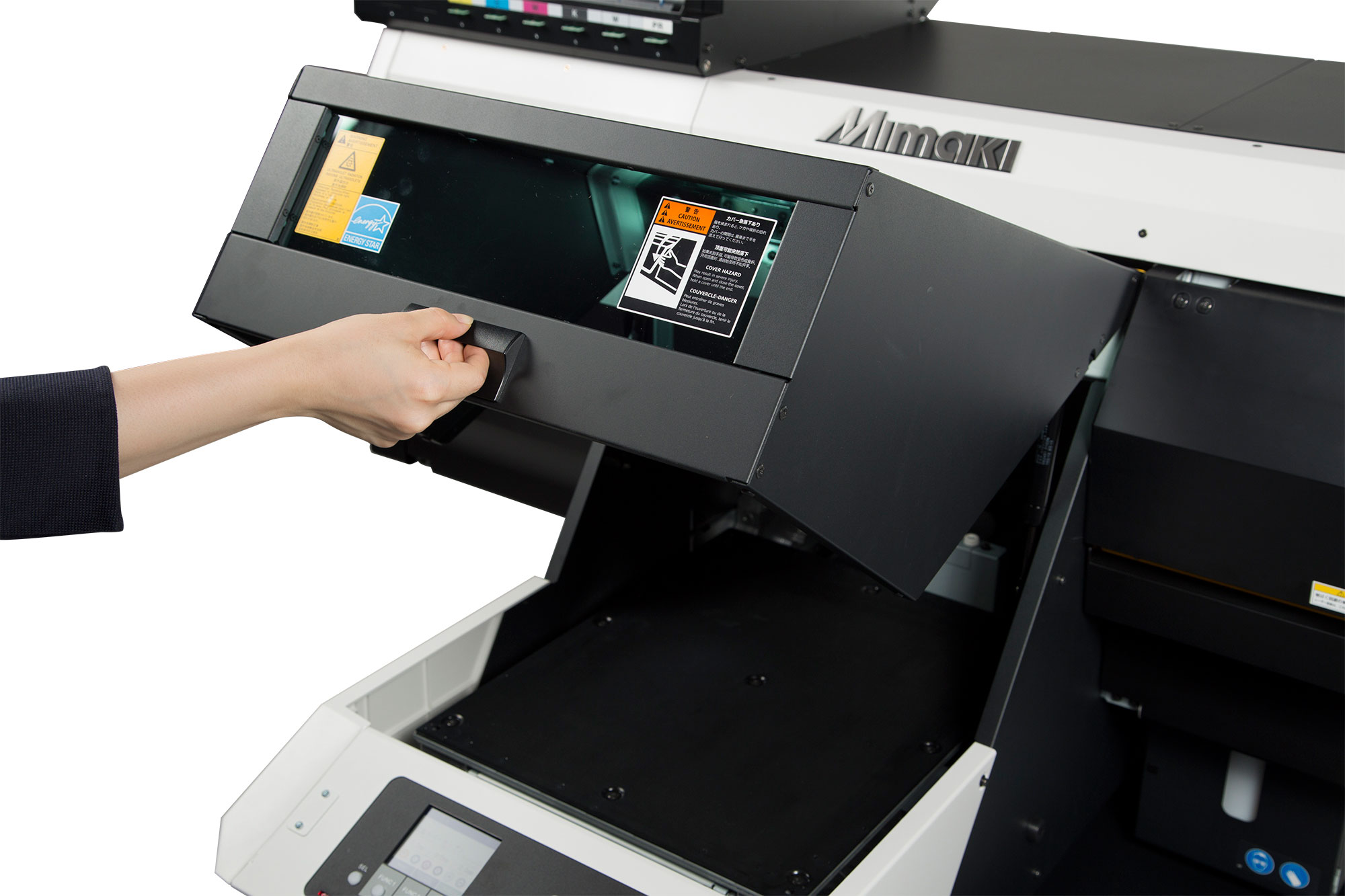

- Full cover protection prevents dust affecting print quality
- Choice of LH-100 or LUS-120 inks, each with 9 colours including white, clear and primer
- Exceptional print quality as a result of using Mimaki technologies including MAPS4, MFD1 and variable dot
- Uninterrupted printing through the use of MCT, NCU and NRS technologies
* when printing in 600x600dpi, 8pass mode
Specifications of UJF-3042 MkII / UJF-6042 MkII
| Item | UJF-3042 MkII | UJF-6042 MkII | |
| Head | On-demand Piezo head | ||
| Ink | Type / colour | LH-100 (C, M, Y, K, W, Cl) LUS-120 (C, M, Y, K, W, Cl) PR-200 (Primer) |
LH-100 (C, M, Y, K, Lc, Lm, W, Cl) LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) PR-200 (Primer) |
| Capacity | 250ml / 1,000ml | ||
| Ink circulation | White ink circulation by MCT (Mimaki Circulation Technology) | ||
| Resolution | Y-dpi | 600, 1,200 *1 | |
| X-dpi | 600, 900, 1,200 | ||
| Media jam / obstacle sensor | Laser beam | ||
| UV unit | Air-cooling LED-UV x1 | ||
| Nozzle Check Unit (NCU) | Option | Equipped | |
| Mist absorption fan | Equipped | ||
| Table | Maximum print size | 300mm x 420mm | 610mm x 420mm |
| Max media height | 153mm | ||
| Max media weight | 5kg *2 | 8kg *2 | |
| Flatness accuracy | 0.5mm | 0.3mm | |
| Vacuum | Option | Equipped | |
| Media set | Origin right | ||
| Movement | Table | ||
| Cover | Full table cover | ||
| Distance accuracy | Absolute | ± 0.3mm or ± 0.3% of the distance, whichever is larger | |
| Reproducibility | ± 0.2mm or ± 0.1%, whichever is larger | ||
| Noise | Standby: Below 55dB (FAST-A, Front & Rear & Left & Right 1m) Continuous printing: Below 65dB / Discontinuous printing: Less than 70dB |
||
| Standards | VCCI-Class A, FCC ClassA, CE Marking (EMC Directive, Machine instruction, RoHS Directive, Low Voltage Directive), CB Report, RoHS compliance | ||
| Power specification | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz | ||
| Power consumption | Less than 800W | ||
| Environment | Operational temperature | 20 ~ 30°C | |
| Relative humidity | 35 ~ 65%Rh (Non condensing) | ||
| Accuracy guaranteed temperature | 20 ~ 25°C | ||
| Temperature gradient | Within ± 10°C /h | ||
| Dust | Equivalent to office level | ||
| Interface | USB2.0 / Ethernet 1000BASE-T | ||
| Dimensions (W x D x H) | 1,355 x 1,290 x 856 mm | 1,665 x 1,290 x 856 mm | |
| Weight | 145kg | 155kg | |
Supplies of UJF-3042 MkII / UJF-6042 MkII
| Item | Colour | Item No. | Remarks |
| LH-100 | Cyan | TBA | 250ml bottle |
| Magenta | |||
| Yellow | |||
| Black | |||
| Light Cyan | |||
| Light Magenta | |||
| White | |||
| Clear | |||
| LH-100 | Cyan | TBA | 1,000ml bottle |
| Magenta | |||
| Yellow | |||
| Black | |||
| Light Cyan | |||
| Light Magenta | |||
| White | |||
| Clear | |||
| LUS-120 | Cyan | TBA | 250ml bottle |
| Magenta | |||
| Yellow | |||
| Black | |||
| Light Cyan | |||
| Light Magenta | |||
| White | |||
| Clear | |||
| LUS-120 | Cyan | TBA | 1,000ml bottle |
| Magenta | |||
| Yellow | |||
| Black | |||
| Light Cyan | |||
| Light Magenta | |||
| White | |||
| Clear | |||
| PR-200 | Primer | TBA | 250ml bottle |
| 1,000ml bottle |

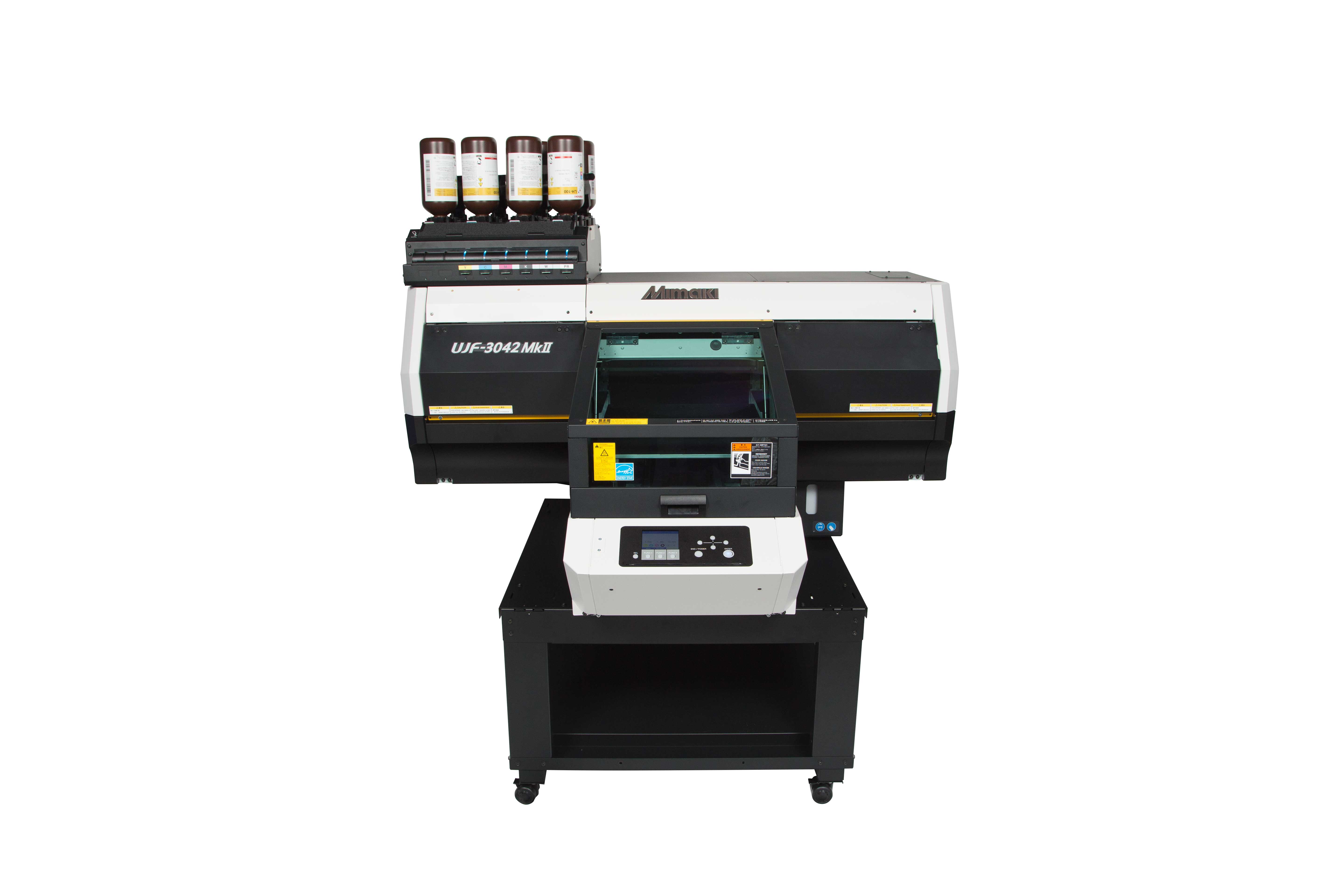

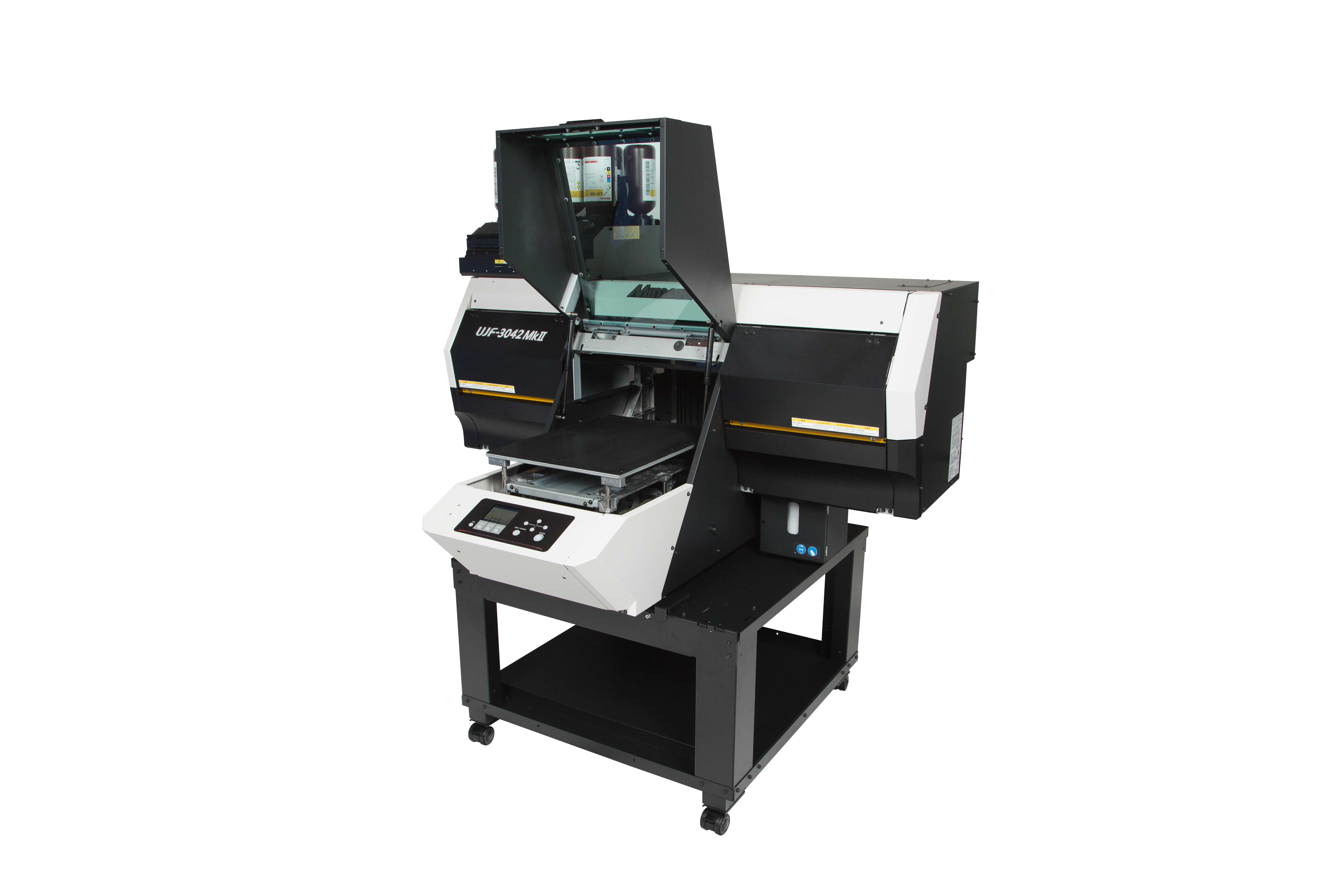

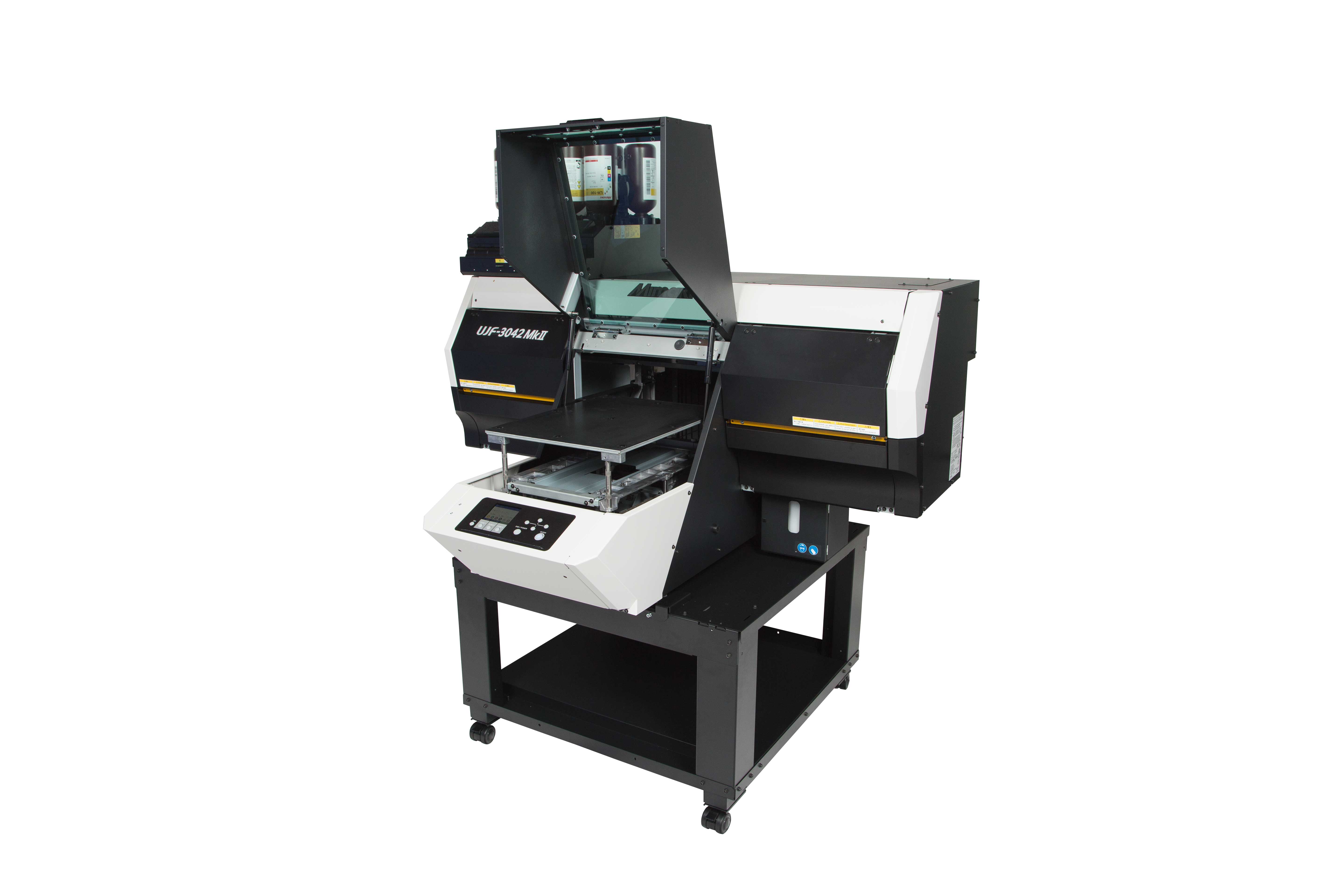

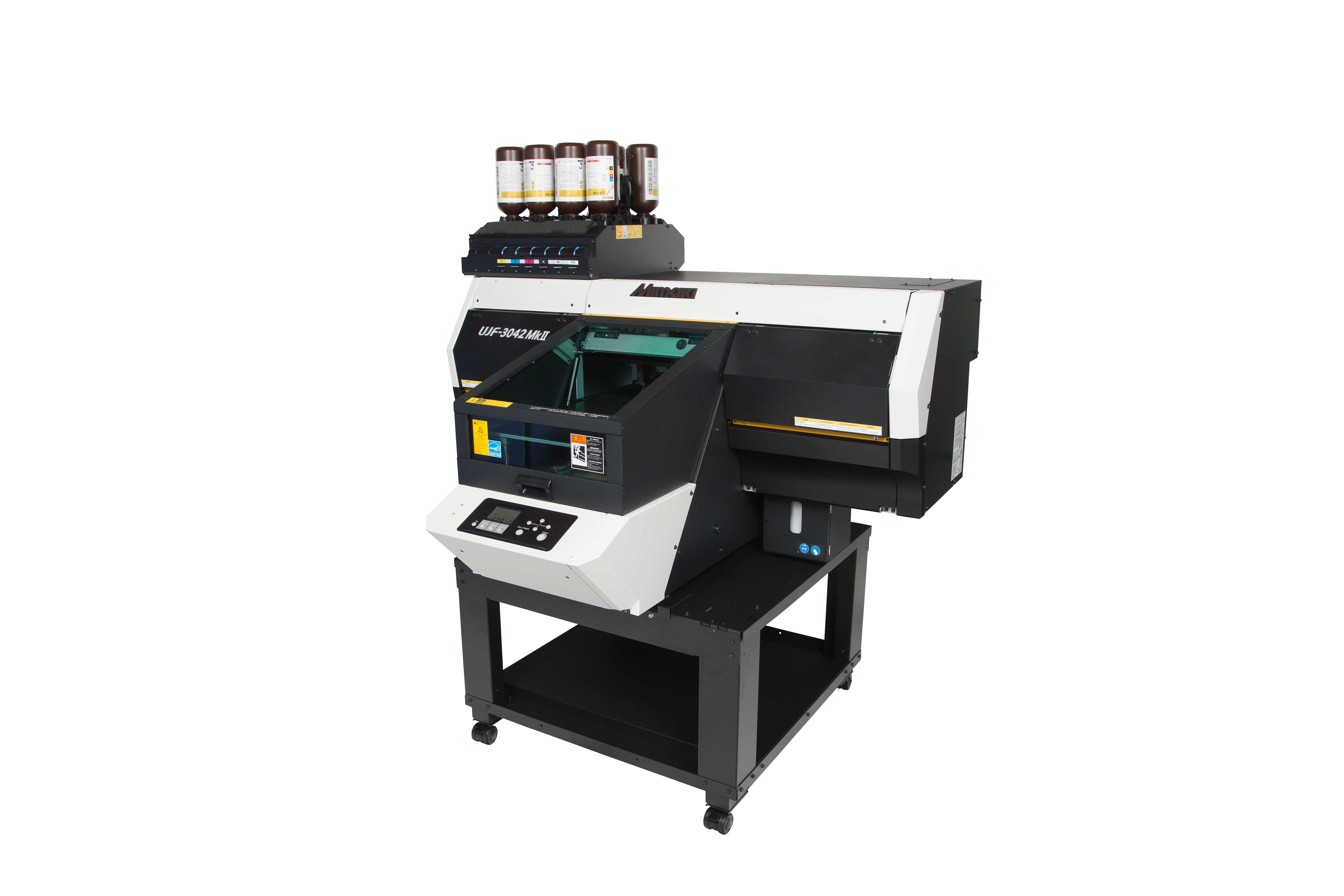

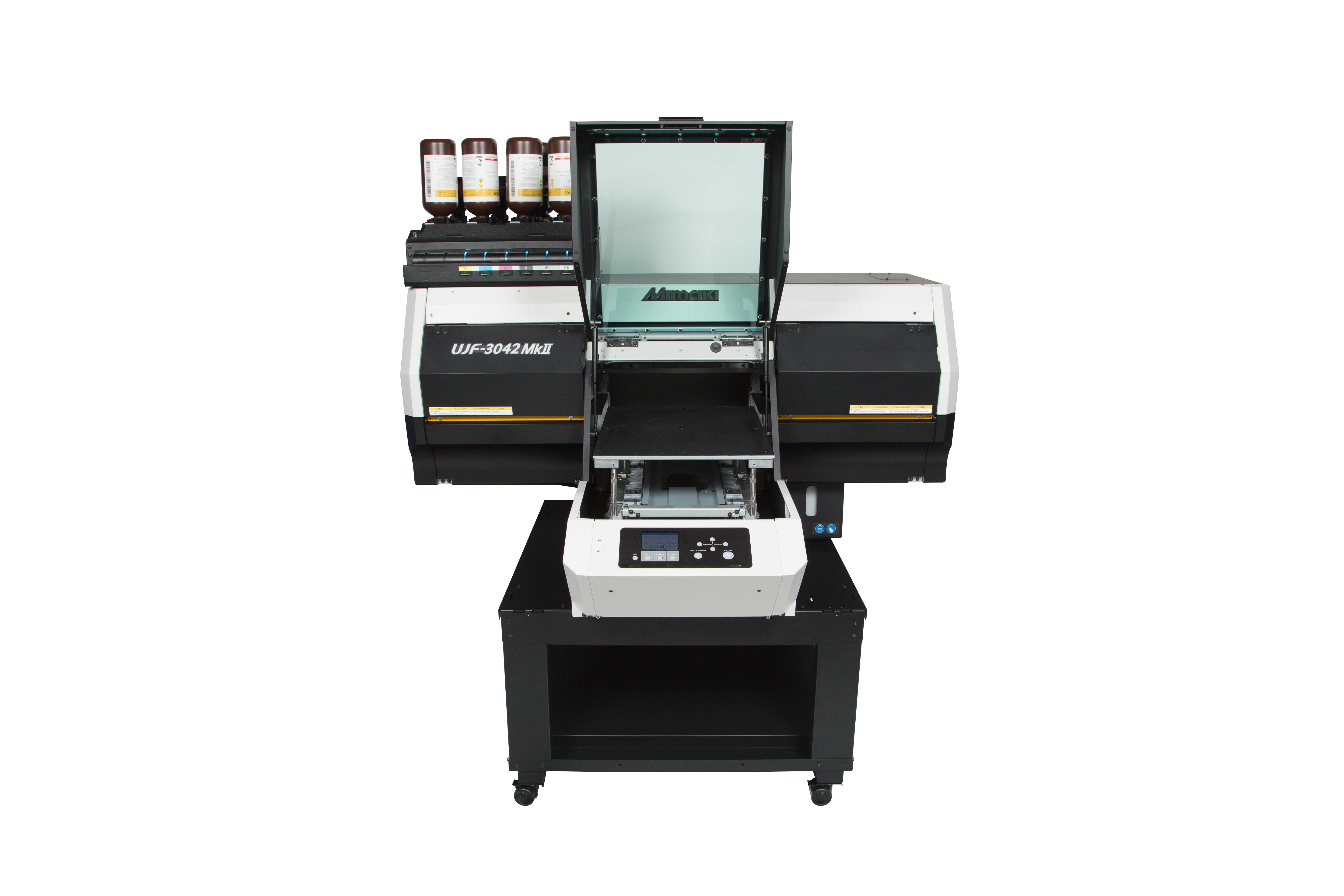

Product images of the UJF-3042 MkII

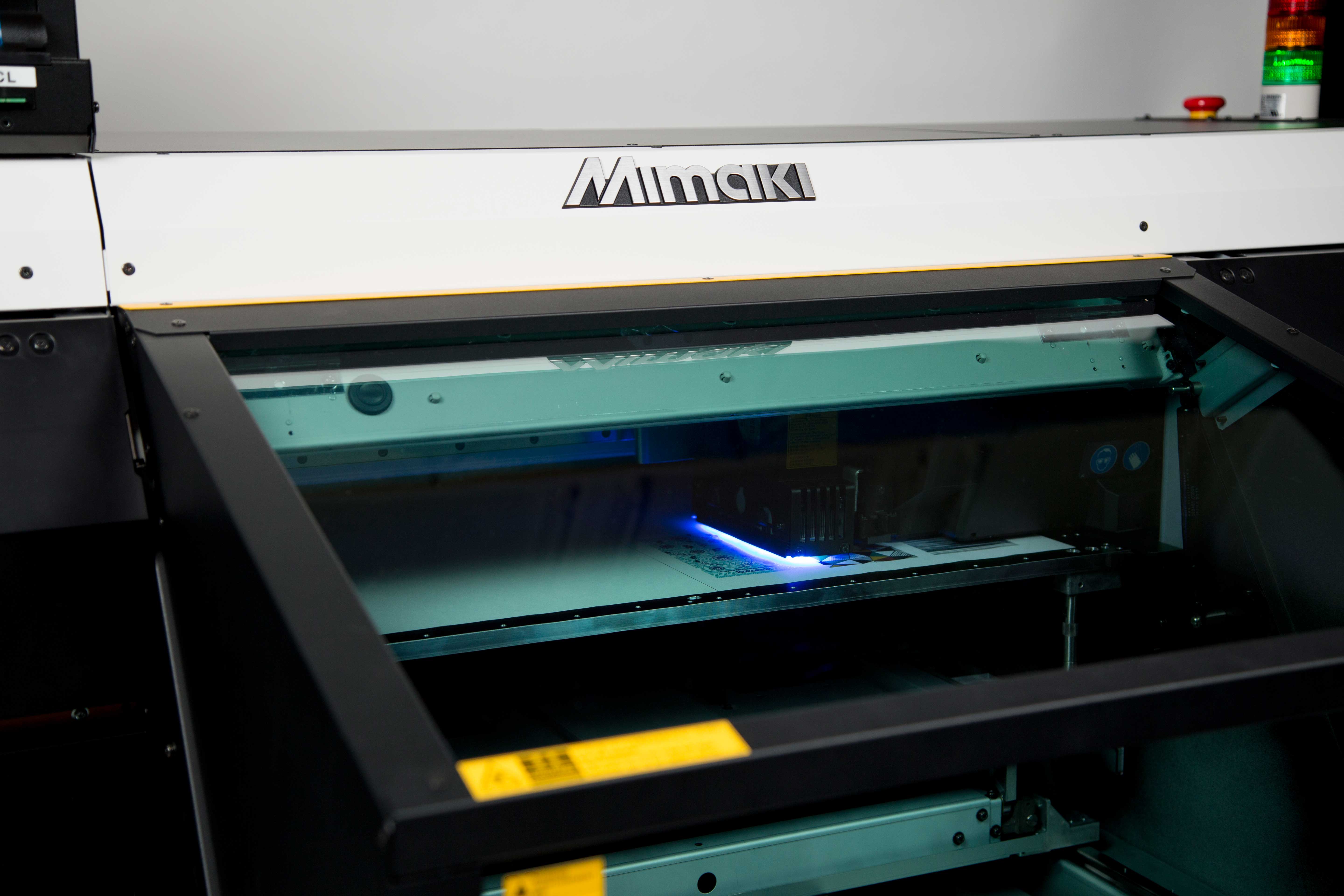

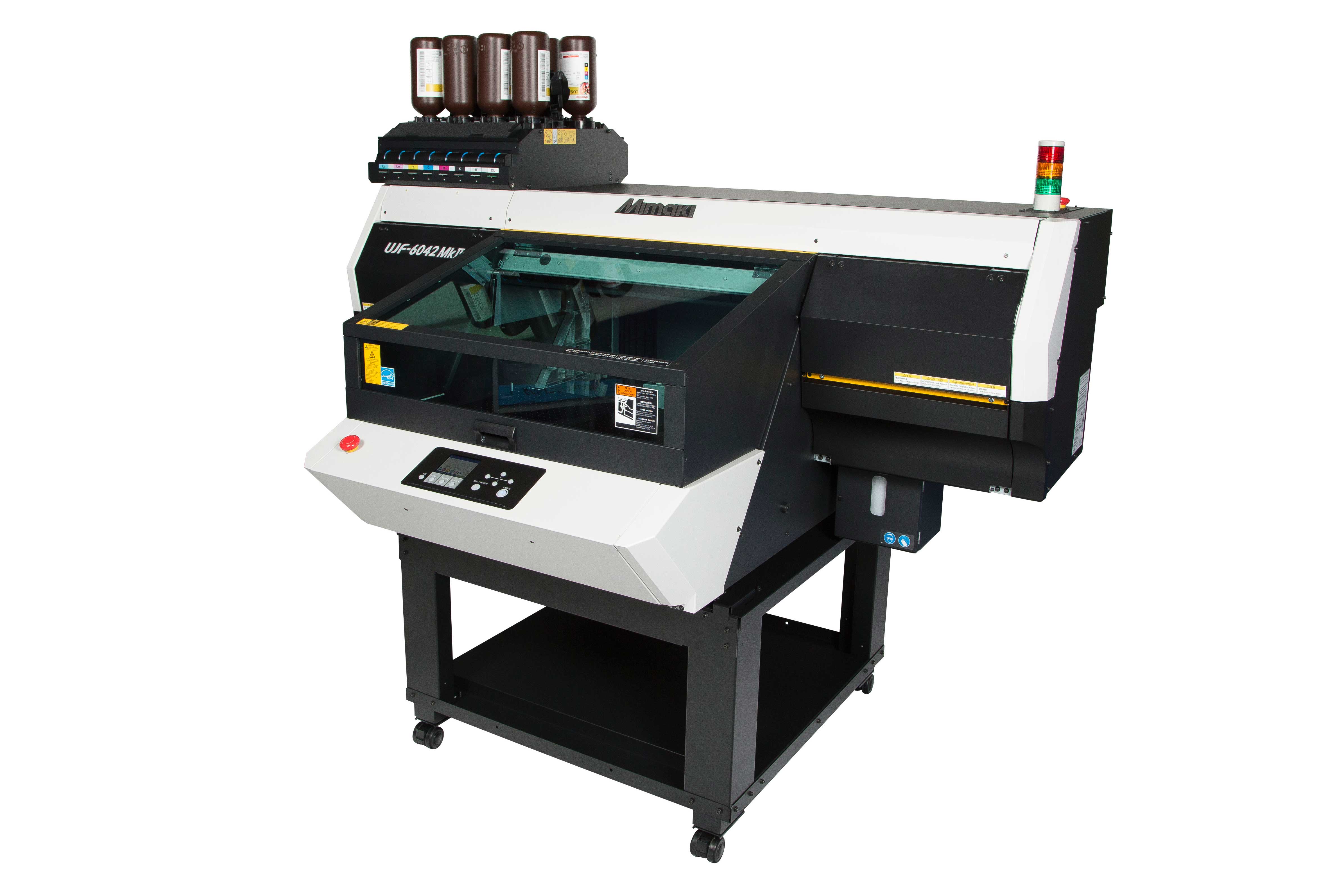

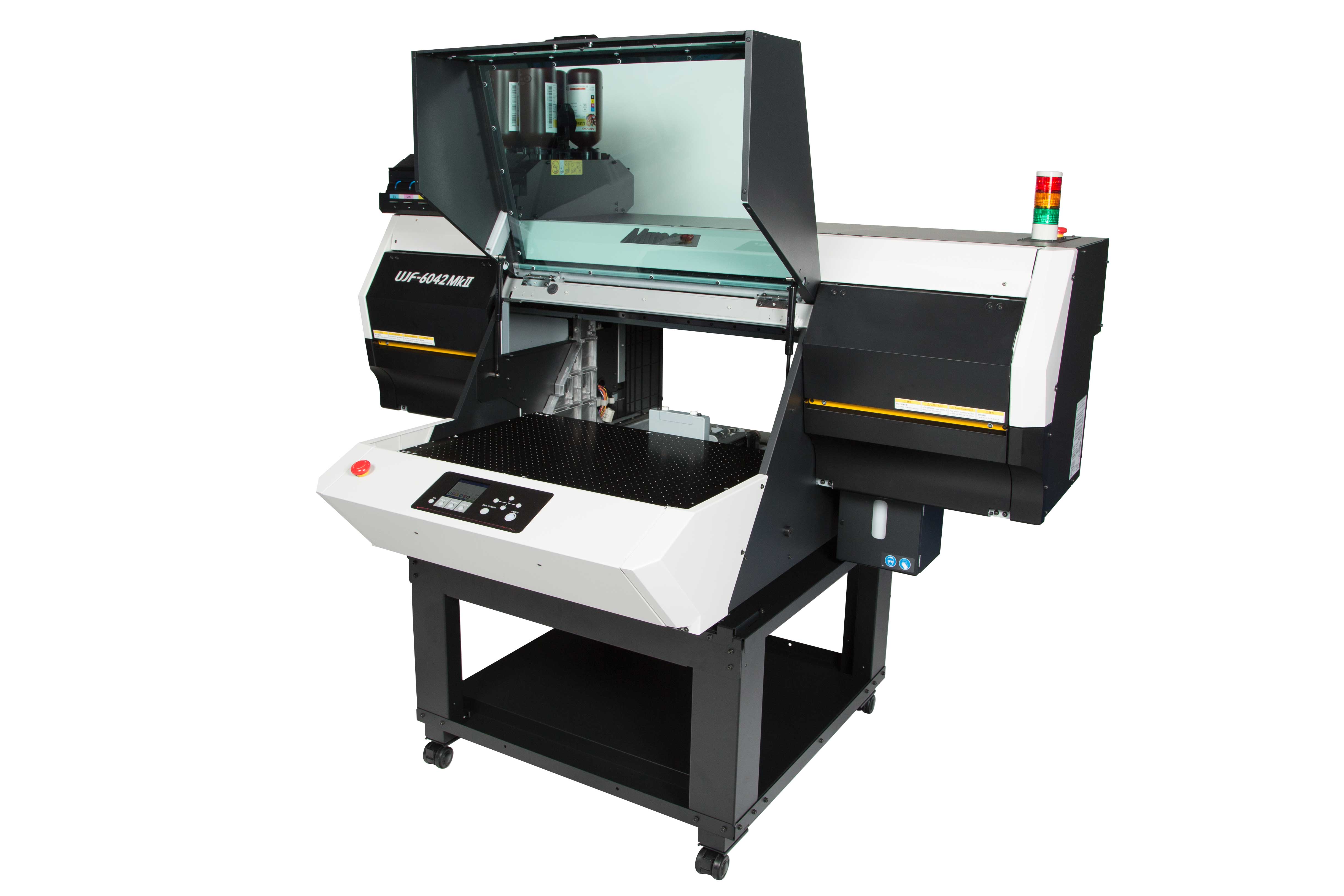

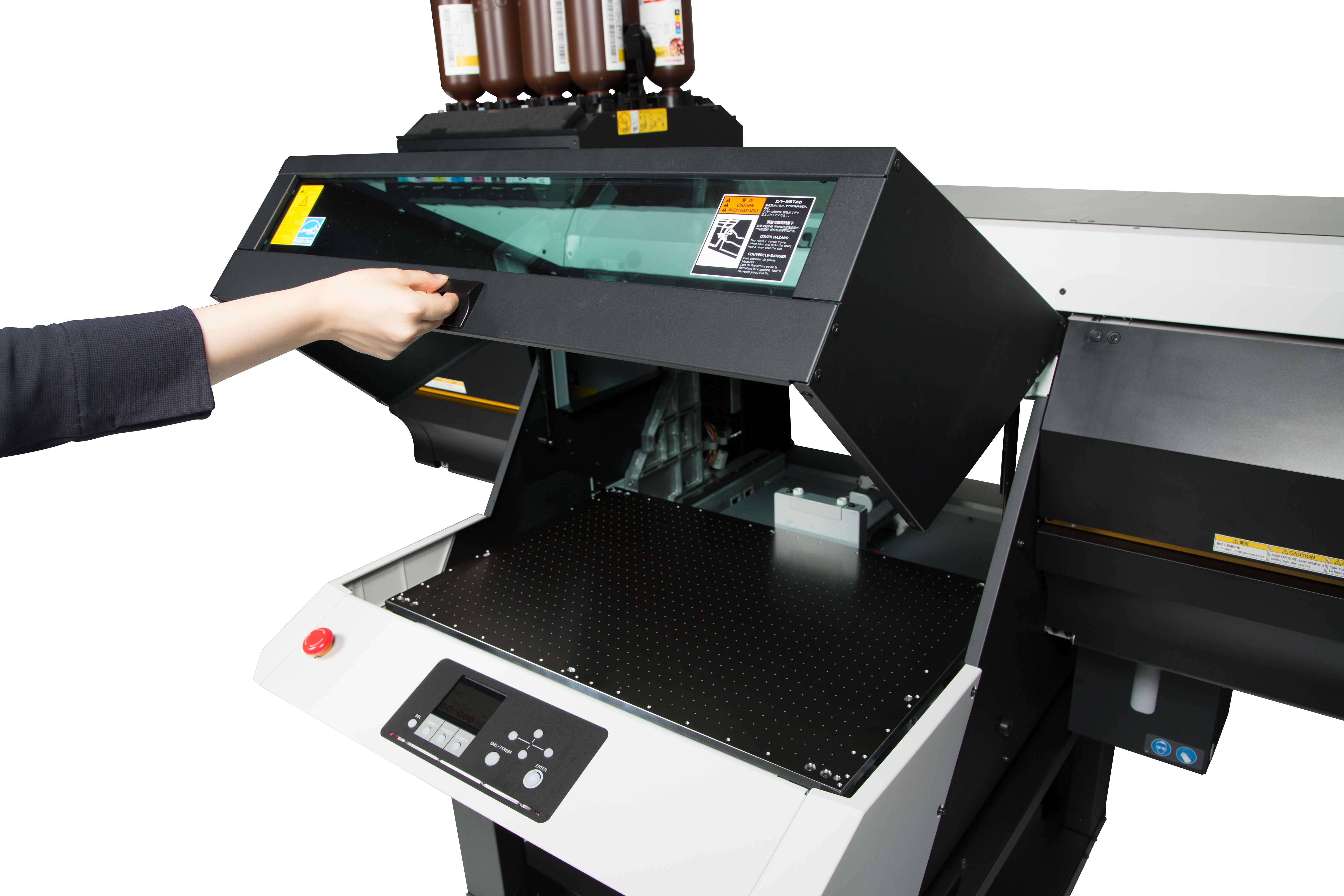

Product images of the UJF-6042 MkII
Features of UJF-3042 MkII / UJF-6042 MkII
Mimaki Advanced Pass System (MAPS)
MAPS is Mimaki’s unique anti-banding feature. Swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.
MFD-Mimaki Fine Diffusion
Dithering is an image processing technique, which transforms image data for inkjet printing. Pattern and error-diffusion dithering may, however, generate particular image noise resulting in uneven colour printing or tone jumps, even on a high-performance printing unit. New RasterLink 6 software*, incorporates patented* image-processing MFD, which reduces noise due to dithering through hybrid processing of pattern- and error-diffusion dithering, thereby enhancing print quality.
* MFD is available for Version 4.0 and higher
* Patent number: 5230816
Maintain high productivity levels
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.
Mimaki Circulation Technology
Mimaki Circulation Technology (MCT) for white ink circulates the ink at regular intervals to prevent pigment sedimentation occurring. This results in printing becoming more stable, requires fewer cleans and delivers a more cost effective use of ink.
Two types of LED UV ink
LH-100 hard UV ink excels in scratch and chemical resistance as well as colour reproduction.
LUS-120 flexible ink has a wide colour gamut, good weather resistance and can be folded and stretched.
Both ink sets include CMYK LC, LM, White, Clear & Primer
Simultaneous white ink under and overprint
Print outstandingly colourful, bright images on transparent and coloured substrates with white ink under or overprint.
< sample prints on transparent acrylics >
4/6 colours only
Without white ink as a basis for overprinting, the colours are not as vivid as they should be.
4/6 colours + white
With the white ink overlay print, the images are bright and vivid.
Sophisticated RIP software maximizes the performance of UJF-3042/6042 MkII
Works with software Illustrator, Photoshop and Coreldraw and files PS, EPS, TIFF, BMP, JPEG etc
